Customizable Steel Spiral Bevel Gear Set for High Precision Right Angle Transmission

Spiral Bevel Gear Set – High Precision Right Angle Transmission Solution

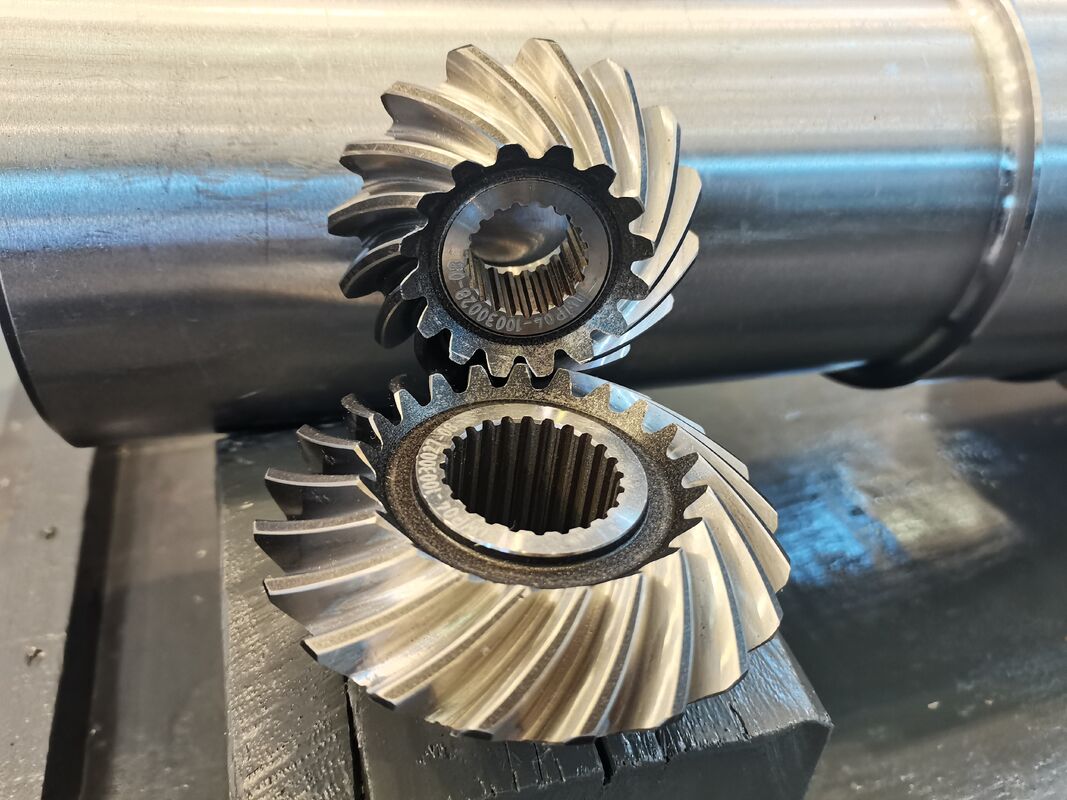

The spiral bevel gear set represents the pinnacle of precision engineering in power transmission components. Comprising a spiral bevel gear and a pinion shaft, this assembly is designed to deliver smooth, efficient torque transfer at 90° angles(mostly), making it indispensable for applications demanding high accuracy, low noise, and robust durability.

Technical Excellence

Design & Geometry: The spiral teeth feature a curved profile that meshes gradually, reducing impact loads and minimizing operational noise. This spiral design also enables higher load-carrying capacity compared to straight-bevel alternatives.

Material & Hardness: Fabricated from premium alloy steel, the gears undergo precision heat treatment (e.g., carburizing, quenching) to achieve a surface hardness of HRC 58–63, ensuring exceptional wear resistance and fatigue strength.

Manufacturing Precision: Employing advanced CNC gear cutting grinding and scraping technologies, our gear set meets DIN3965 Class 5–8 standards for tooth profile, pitch, and surface finish, guaranteeing seamless meshing and long-term reliability.

Application Scenarios:

1. Construction Machinery: Bevel gear sets are used in the rear axles of mining trucks, cement vertical mill reducers, etc.;

2. Mining Machinery: Gear sets are used in spring and hydraulic cone crushers, gyratory crushers, and feeders, etc.;

3. Industrial Equipment: Gear sets are used in robots, heavy-duty machine tools, gearboxes, and reducers, etc.;

4. Marine and Offshore Engineering: Bevel gear sets are used in ship propeller propulsion systems, etc.;

5. Chemical and Petroleum Industry: Bevel gear sets are used in the rotary tables of oil drilling platforms;

6. Railways: Bevel gear sets are used in the transmission systems of high-speed trains, bullet trains, and locomotives, etc.

Hunan Ruida Heavy-duty Machinery and Equipment Co., Ltd. is a well-known enterprise located in LonglingIndustrial Park, Heshan District, Yiyang City. lts predecessor was Changsha Ruida Mold Equipment Co., Ltd. Sinceits establishment in October 2003, it has been dedicated to the research, development, and production of largemodule straight bevel gears and spiral bevel gears.
