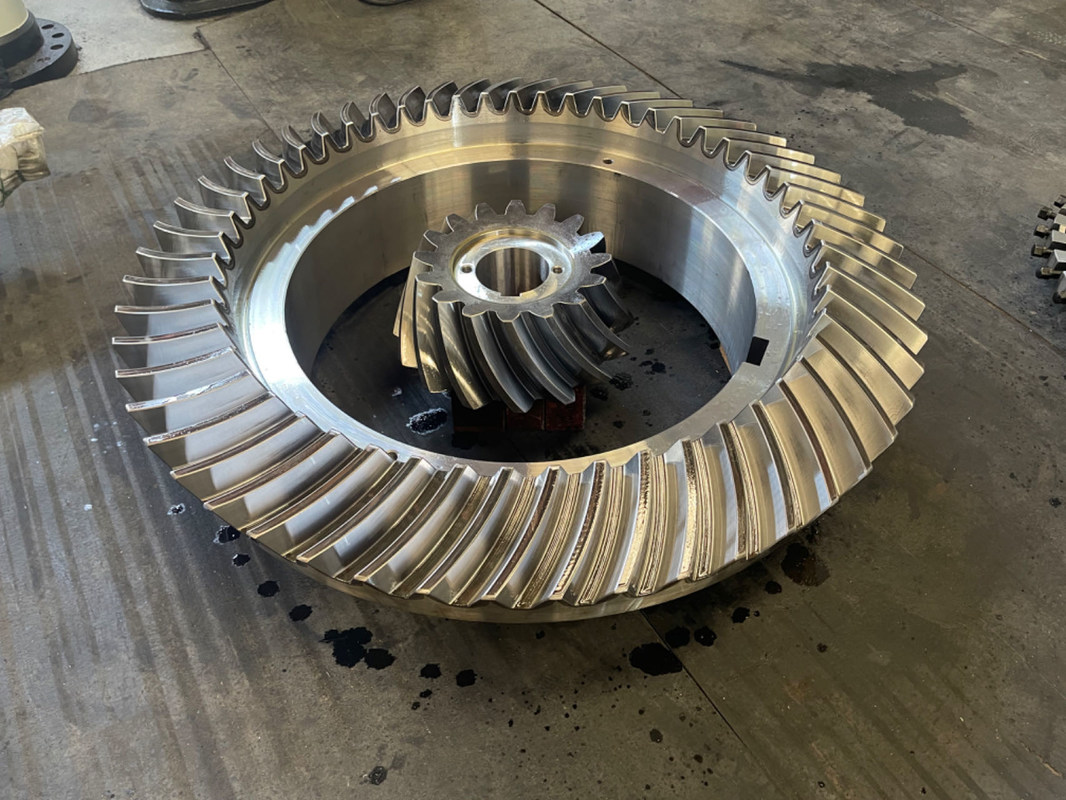

Ruida Custom High-Precision Large spiral Bevel Gear For Crusher Reducer Accessories
Spiral Bevel Gear Set – High Precision Right Angle Transmission Solution
The spiral bevel gear set represents the pinnacle of precision engineering in power transmission components. Comprising a spiral bevel gear and a pinion shaft, this assembly is designed to deliver smooth, efficient torque transfer at 90° angles(mostly), making it indispensable for applications demanding high accuracy, low noise, and robust durability.
Technical Excellence
Design & Geometry: The spiral teeth feature a curved profile that meshes gradually, reducing impact loads and minimizing operational noise. This spiral design also enables higher load-carrying capacity compared to straight-bevel alternatives.
Material & Hardness: Fabricated from premium alloy steel, the gears undergo precision heat treatment (e.g., carburizing, quenching) to achieve a surface hardness of HRC 58–63, ensuring exceptional wear resistance and fatigue strength.
Manufacturing Precision: Employing advanced CNC gear cutting grinding and scraping technologies, our gear set meets DIN3965 Class 5–8 standards for tooth profile, pitch, and surface finish, guaranteeing seamless meshing and long-term reliability.
Application Scenarios:
1. Construction Machinery: Bevel gear sets are used in the rear axles of mining trucks, cement vertical mill reducers, etc.;
2. Mining Machinery: Gear sets are used in spring and hydraulic cone crushers, gyratory crushers, and feeders, etc.;
3. Industrial Equipment: Gear sets are used in robots, heavy-duty machine tools, gearboxes, and reducers, etc.;
4. Marine and Offshore Engineering: Bevel gear sets are used in ship propeller propulsion systems, etc.;
5. Chemical and Petroleum Industry: Bevel gear sets are used in the rotary tables of oil drilling platforms;
6. Railways: Bevel gear sets are used in the transmission systems of high-speed trains, bullet trains, and locomotives, etc.
| Module |
1 ~ 45 |
| Teeth Number |
6 ~ 120 |
| Shaft Angle |
90° (customizable) |
| Accuracy Grade |
Din 3965 Grade 4 ~ 9 |
| Material |
20CrMnTi, 20Cr2Ni4A, 42CrMo, 18CrNiMo7-6 |
| Heat Treatment |
Carburizing & quenching, tempering, induction hardening |
| Surface Hardness |
HRC 58 ~ 62 |
| Spiral Angle |
15° ~ 45° |
| Efficiency |
≥97% |
| Max. Speed |
≤10000 rpm |
Customization:
Product Customization Services for Bevel Gear:
Brand Name: Ruida
Model Number: Custom Made
Certification: ISO9001
Minimum Order Quantity: 1 Sets
Price: Depends On Drawings
Packaging Details: Plywood Box
Delivery Time: 45-60 Days
Payment Terms: 50% T/T, 50% T/T Before Shipment
Supply Ability: 5000 Sets/year
Application: Power Transmission And Motion Control
Backlash: Depends On Size
Module: Customization
Mounting Type: Straight Bore Or Taper Bore
Bore Diameter: Depends On Size
FAQ
1. What products do you manufacture?
We specialize in bevel gears and other industrial transmission components, including spiral bevel gears, straight bevel gears, spur gears, helical gears, worm gears, large module gears, big ring gears, custom large gears, and gear shafts.
2. Do you make standard products or custom gears?
We mainly focus on custom gear manufacturing. To provide an accurate quotation and produce the correct gear, we usually need your 2D drawing, 3D drawing, or detailed technical specifications such as module, number of teeth, material, hardness, dimensions, and application requirements. Gears on our website are mainly for reference, and production is typically based on customer drawings.
3. What is your production range?
Our manufacturing capability includes big-module straight bevel gears with a machinable module range of 12–40 mm and workpiece diameters of 150–1700 mm; high-precision spiral bevel gears with a machinable module range of 2–45 mm and diameters of 50–2300 mm; and cylindrical gears with a machinable module range of 1–25 mm and diameters of 50–2000 mm
4. What industries are your gears used in?
Our gears are used in a wide range of heavy-duty and industrial transmission applications. Based on the products displayed on the site, typical applications include crusher machines, reducers, vertical cement mills, and other industrial machinery systems that require durable and precise gear transmission.
